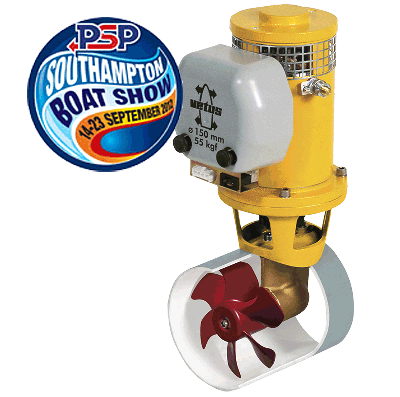

Vetus Bow Thruster 55Kgf 3kW 4hp 12v

Home : Bow Thrusters : Bow Thrusters : Electric Thrusters : BOW5512D
Vetus Bow Thruster 55Kgf 3kW 4hp 12v Your Price 1,175.20
Resources
Larger Image
Email to a Friend
View BOW55 Manual View BOW55 Manual
View Printable Page View Printable Page
The Vetus 55kgf is arguably the most popular Bow Thruster for Yachts and Powerboats up to 12.5m (42ft). Manufactured using the highest quality materials to give high power and long service life.

The Vetus 55Kgf unit is one of the few thrusters for this class of vessel with a 150mm diameter tunnel -making it much easier to fit than competitors with standard 185mm units.

Key benefits of a Vetus Bow Thruster are:
  1. High quality, high output DC motor.
  2. Bronze streamlined lower leg
  3. Single 6 Blade propeller - specially designed with MARIN to give 9% more thrust - equal in both directions with less cavitation and less tunnel noise
  4. Flexible drive coupling - no shear pin
  5. Multi-Station control options with simple wiring
  6. World-Wide reputation
Vetus Shop Tip Please call us now if you are unsure about which model Bow Thruster is correct for your boat: 0800 9178 780
Add to Order
1,419.00 inc VAT
(1,182.50 ex VAT)

1,175.20 inc VAT
(979.33 ex VAT)
5.0 in stock
QTY

Stock Details
Product Code: BOW5512D
EAN Barcode:
Manufacturer: Vetus
Ship Weight: 16.75 Kg
Technical Data
Model Details
Thrust: 55 Kgf
Power kW (hp): 3 (4)
Reversible DC Motor: yes
Tunnel Internal Diameter: 150 mm
Weight (Excluding Tunnel): 20 Kg
Model Dimensions
Model: BOW5512C
Drawing: Vetus Bow Thruster 55Kgf
A: 143 mm
B: 377 mm
C: 79 mm
D: 300 — 600 mm
E: 160 mm
F: 130 mm
G: 150 mm
H: 150 mm
Power Details
Current Consumption: 350 Amps
Operating Time (max/hr): 4 minutes
Main Fuse ('Slow Blow'): 250 Amps
Battery Ah Min/Max: 1 x 108 / 1 x 143
Battery Cables (m/mm): 0-8/70
Battery Switch: 250
