Variably adjustable piston pump 75cc left handed SAE-B flang
Home : Engine Room : Power Hydraulics : HT1022SD

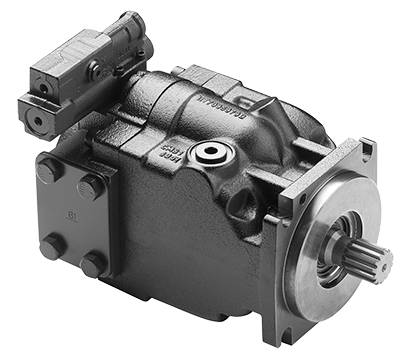

Variably adjustable piston pump 75cc left handed SAE-B flang Your Price £4,488.30
Resources
Larger Image
Email to a Friend
View Printable Page View Printable Page
All VETUS power hydraulic systems use a variable and adjustable piston pump, which operates according to the constant pressure principle. This type of pump continuously varies its output to provide the ideal balance between the required flow rate and the maximum operating pressure (“load sensing”). If no hydraulic flow is required, the pump will simply freewheel, in which case the power drain and wear and tear will be negligible.

Body: Cast Iron
Capacity : 75 cc
Sense of rotation : Left handed.
Connection : SAE-C flange, 14 spline shaft.
Side connection for suction and pressure.
Fits Twindisc gearboxes. Can also be used belt driven, with appropriate supports.
Maximum r.p.m. : 2,800.
Add to Order
£4,987.00 inc VAT
(£4,155.83 ex VAT)
Out of Stock
QTY



Click above to see
YOUR PRICE!
Stock Details
Product Code: HT1022SD
EAN Barcode:
Manufacturer: Vetus
Ship Weight: 0.00 Kg
