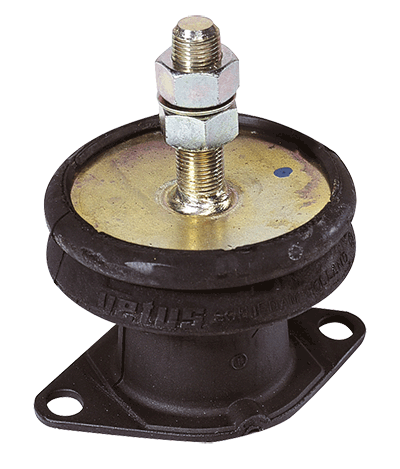

Vetus Hydraulic Engine Mount Type MITSTEUN
Home
:
Engine Room
:
Engine Mounts
:
MITSTEUN
Resources
Larger Image
Email to a Friend
View Printable Page
This hydro-damper is a combination of a conventional rubber-metal damper and a hydraulic shock absorber. Especially for engines with 1, 2 or 3 cylinders, producing many horizontal and vertical movements, the VETUS hydro-damper is an absolute sensation: the reduction of vibration and noise is truly staggering.
The maximum static load per support is 60 kg and the maximum thrust per support is 50 kg. In other words: dependent on gearbox ratio, number of revolutions, propeller diameter etc., these mountings are suitable for engines of up to 18 - 26 kW (25 - 35 HP).
Add to Order
£295.50
inc VAT
(£246.25 ex VAT)
10+ in stock
QTY
Click above to see
YOUR PRICE!
Stock Details
Product Code:
MITSTEUN
EAN Barcode:
Manufacturer:
Vetus
Ship Weight:
0.81 Kg
Technical Data
Dimensional Details
Model:
Vetus MITSTEUN
Drawing:
Stiffness Ratio
vertical:
1
athwartships:
1
fore & aft:
1
Specification
Min Load:
25 Kg
Min Compression:
1.3 mm
Max Load:
67 Kg
Max Compression:
4.5 mm
Hardness ° Shore:
45
