Vetus Hydraulic Steering Cylinder MTC72 10mm tubing

Home : Steering : Hydraulic Cylinders - Inboard : MTC7210
Vetus Hydraulic Steering Cylinder MTC72 10mm tubing Your Price £323.10
Resources
Larger Image
Email to a Friend
View Printable Page View Printable Page
High quality brass bodied hydraulic cylinder for mid sized yachts and work boats. Supplied with zinc plated rod end (stainless steel upgrade available) and compression fittings with bleed nipples.

Wheel Turns (lock to lock with HTP pump models)
HTP20: 7.5
HTP30: 4.9
HTP42: 3.5

Dimensions
Stroke: 225mm
Volume: 146cm³
Length of tiller arm: 196mm
Rod End Thread: M12
Weight: 3.8Kg

Technical details:
Max. Torque: 706 Nm (72 kgm) (521 ft.lbs)
Pressure 5492 kPa (56kg/cm²) (797lbs/sq.inch).
Connections: G¼ female pipe thread.
Total rudder angle: 70° (2 x 35°).
Add to Order
£359.00 inc VAT
(£299.17 ex VAT)
4.0 in stock
QTY



Click above to see
YOUR PRICE!
Stock Details
Product Code: MTC7210
EAN Barcode: 8717372085888
Manufacturer: Vetus
Ship Weight: 4.00 Kg
Technical Data
Dimensional Details
Model: MTC7210

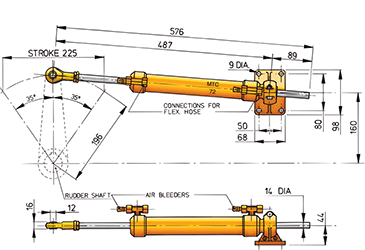

Drawing: Vetus MTC72 dimensions
